- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 94223
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- Power out
- 1 W (1.7 W max.)
- Material
- Wooden case
- from Radiomuseum.org

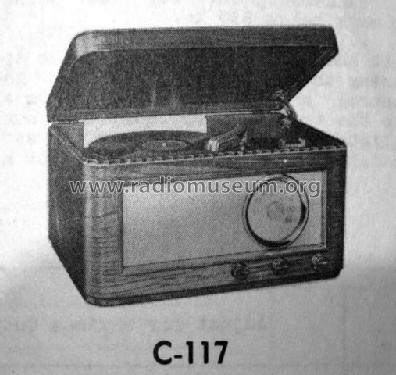

- Model: C-117 - Canadian General Electric
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 17.25 x 9.75 x 12.5 inch / 438 x 248 x 318 mm
- Notes
-
Loop antenna. Manual record player. For 25 or 60 Hz depending on name plate.
Same chassis as C-118.
- Mentioned in
- General Electric Radio and Television Service Manual 1945-1949 (Pages 75-78)
- Literature/Schematics (1)
- Radio College of Canada, Individual Circuit Service, 1927-1953
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
