- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 287926
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 0.8 W (1.4 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: C-124 - Canadian General Electric
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 30 x 32.5 x 15.75 inch / 762 x 826 x 400 mm
- Notes
-

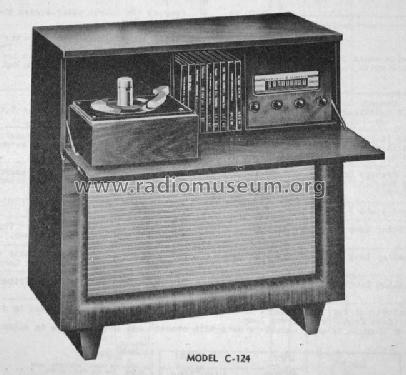

The Canadian General Electric model C-124 is a 6 tube AC operated radio phonograph combination using a model CP8A - 45 rpm automatic record changer built into a console cabinetfinished in Walnut, Mahogany or light Oak.
For 60 or 25 Hz depending on nameplate.
- Literature/Schematics (1)
- General Electric Radio and Television Service Manual 1945-1949
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
