• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1948 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 295447

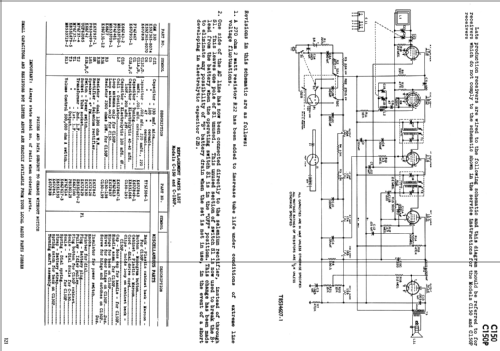

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 1T4 1R5 1T4 1S5 3Q4

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / Either 9 & 90 or AC or DC 105 to 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.18 W (0.25 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: C-150P - Canadian General Electric

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 12.5 x 9.25 x 5.75 inch / 318 x 235 x 146 mm

• Notes

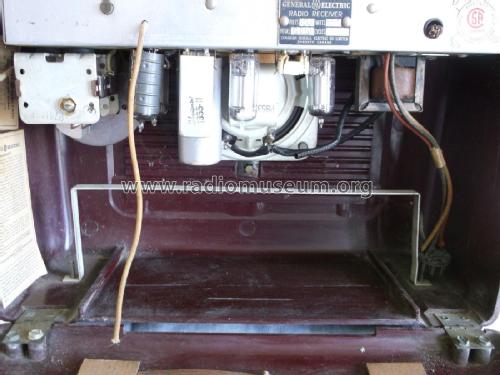

• The Canadian General Electric model C-150P is a 5-tube, single band, AC/DC or battery operated portable radio. The model C-150 has a similar circuit and specifications except it has a wooden cabinet.

• Literature/Schematics (1)
• General Electric Radio and Television Service Manual 1945-1949 (pages 118 to 121)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
