- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 289576

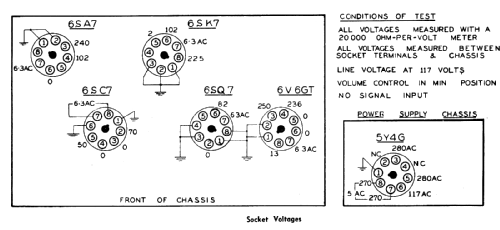

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Power out
- 2.5 W (6 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: C-182 - Canadian General Electric
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 32.25 x 32 x 16.75 inch / 819 x 813 x 425 mm
- Notes
-
The Canadian General Electric model C-182 is a 6 tube console radio with built in automatic record changer for 33 1/3, 45, and 78 rpm records. It uses a magnetic phono pickup. The pilot lamp is a #44 type. For 25 or 60 Hz depending on nameplate.
Available in Walnut, Mahogany and Light Oak finish.
- Literature/Schematics (1)
- General Electric Radio and Television Service Manual 1945-1949 (Pages 122-125)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
