• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 94577

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6AG5 6AK5 6AK5 6SG7 6AL7GT 6SV7 6SV7 6AQ7GT 6SQ7 6J5 6V6GT 6V6GT 6SC7 5U4G

• Main principle
• Superhet with RF-stage; ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm

• Power out
• 10 W (12 W max.)

• Material
• Wooden case

• from Radiomuseum.org

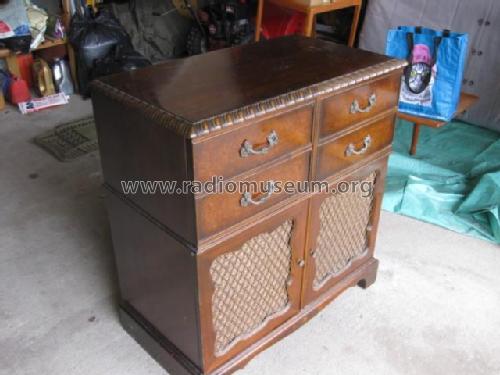

• Model: C-502 - Canadian General Electric

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 33.9 x 34.75 x 18.3 inch / 861 x 883 x 465 mm

• Notes

• The Canadian General Electric model C-502 is a 14 tube AM/FM/SW radio with built in automatic record changer for 78 rpm records. It uses a magnetic pickup. For 25 or 60 Hz depending on nameplate rating.

  Band coverage is as follows:

  Band	Frequency
  FM 1	42-49 MHz
  FM 2	88-108 MHz
  Broadcast	540-1600 kHz
  Shortwave 1	9.4-9.8 MHz
  Shortwave 2	11.5-12.0 MHz
  Shortwave 3	14.8-15.5 MHz



• Mentioned in
• General Electric Radio and Television Service Manual 1945-1949 (Pages 193-202)

• Literature/Schematics (1)
• Radio College of Canada, Individual Circuit Service, 1927-1953
