• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 289680

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12SK7 12BE6 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Power out
• 0.8 W (1.4 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: C-603 - Canadian General Electric

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 19.5 x 28.13 x 13.25 inch / 495 x 715 x 337 mm

• Notes

• The Canadian General Electric model C-603 is a 6 tube AC/DC broadcast receiver.

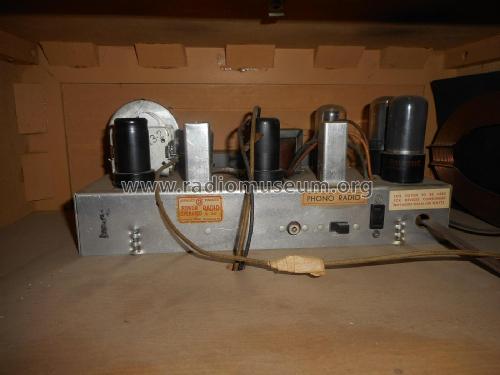

  It has a rear panel phono input (crystal) and an auxilary power receptacle. It uses an internal loop antenna.

  It is available in Walnut or Korina colour.

• Mentioned in
• General Electric Radio and Television Service Manual 1945-1949 (Pages 215-219)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
