• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1959 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 307542

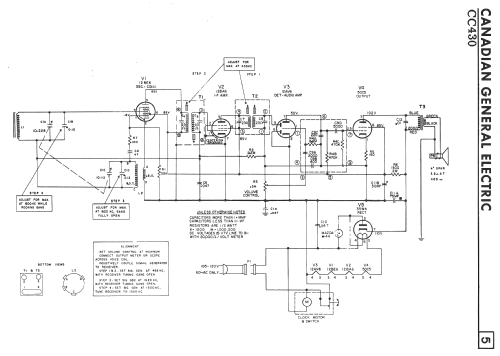

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 105-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CC430 - Canadian General Electric

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• The Canadian General Electric CC430 is a 5-tube clock radio.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 51)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
