• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 185466

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 2.3 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

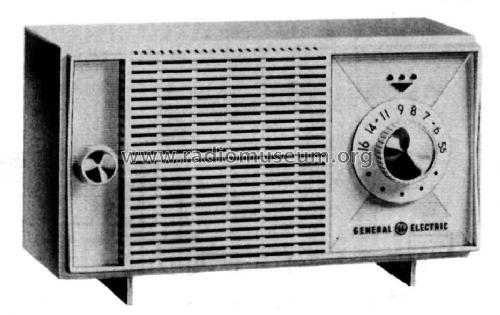

• Model: CT125M PS530933 - Canadian General Electric

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 11.125 x 6.5 x 5.25 inch / 283 x 165 x 133 mm

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
