• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 308551

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 1L6 1T4 1S5 3V4

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Line / Batteries (any type) / Either AC or DC 105-130 or Batteries: 7.5 and 2 x 45 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Power out
• 0.13 W (0.3 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

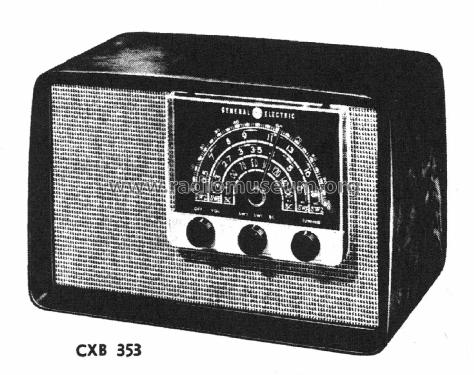

• Model: CXB353 - Canadian General Electric

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• The Canadian General Electric model CXB353 is a 4-tube line or battery powered table radio. Covers standard broadcast and 2.2-6.3 MHz and 6.2-18.2 MHz. Models sold for export have a rear panel switch for 220V operation.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 31)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
