• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1936/1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93403

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6F6 6H6 6F5 6L7 6E5 6J7 6K7 5Z4

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• -Loudspeaker incorporated, but system not known.

• Material
• Wooden case

• from Radiomuseum.org

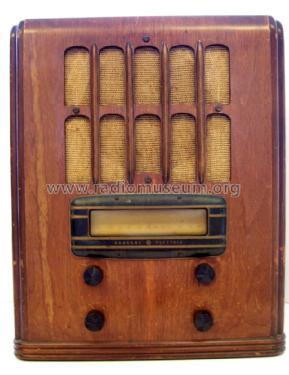

• Model: E-81 - Canadian General Electric

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 15.5 x 19.5 x 11.25 inch / 394 x 495 x 286 mm

• Notes

• General Electric Table Top Tube Radio Model E-81.

• Literature/Schematics (1)
• Radio College of Canada, Individual Circuit Service, 1927-1953

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
