- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1937/1938
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 93522

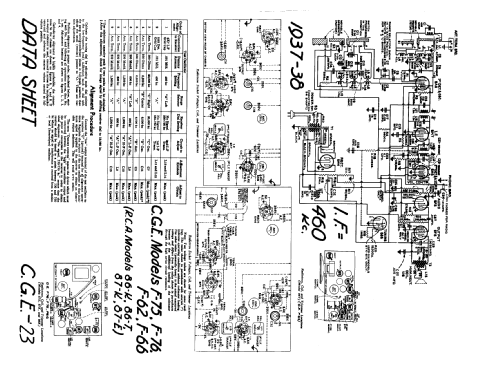

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 2.5 W (4.5 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: F62 - Canadian General Electric
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 19.25 x 12 x 9 inch / 489 x 305 x 229 mm
- Literature/Schematics (1)
- Radio College of Canada, Individual Circuit Service, 1927-1953
- Literature/Schematics (2)
- Table Top Radios Vol. 4 Stein 2003 (page 59.)
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
