- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 93861

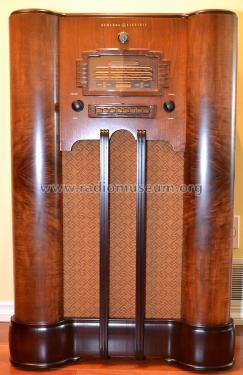

Picture courtesy of guest Bill Whalen

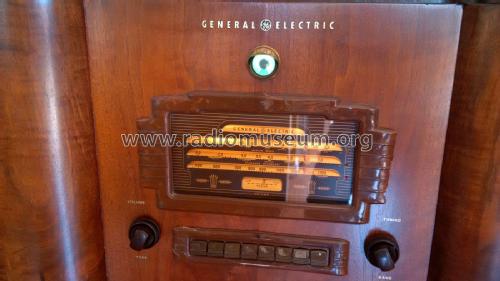

Picture courtesy of guest Bill Whalen
Picture courtesy of guest Bill Whalen
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: G-77 - Canadian General Electric
- Shape
- Console with Push Buttons.
- Notes
-
Nameplate rating 105-125V, 60 Hz, 80 watts. 8 Push Buttons. One is used for phonograph connection. Short wave bands: 6.5 - 22 MHz, 2.0 -7.0 MHz. Broadcast band 530 -1710 kHz.
- Literature/Schematics (1)
- Radio College of Canada, Individual Circuit Service, 1927-1953
- Author
- Model page created by Vitor Oliveira. See "Data change" for further contributors.
