• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1945

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 288044

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage

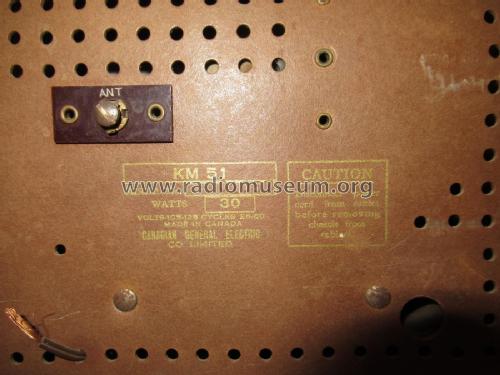

• AC/DC-set / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Power out
• 1 W (1.5 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

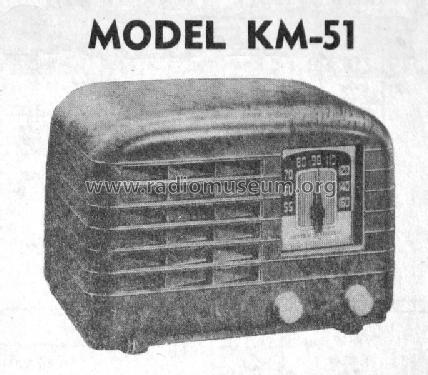

• Model: KM-51 - Canadian General Electric

• Shape
• Tablemodel, with any shape - general.

• Notes

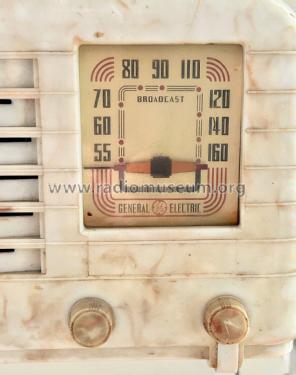

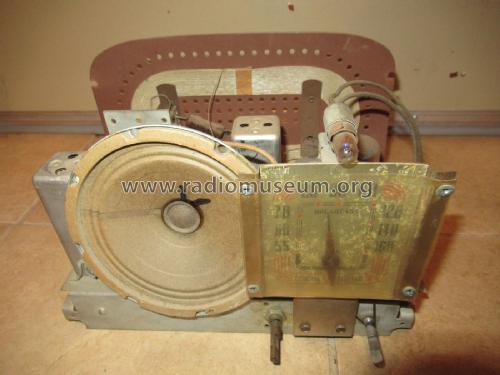

• The Canadian General Electric model KM-51 is a 5 tube table radio covering 540-1600 kHz using an internal loop antenna. Available in Walnut or Onyx colour cabinet.

• Literature/Schematics (1)
• General Electric Radio and Television Service Manual 1945-1949

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
