Musaphonic C414
Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Country
- Canada
- Manufacturer / Brand
- Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 204201

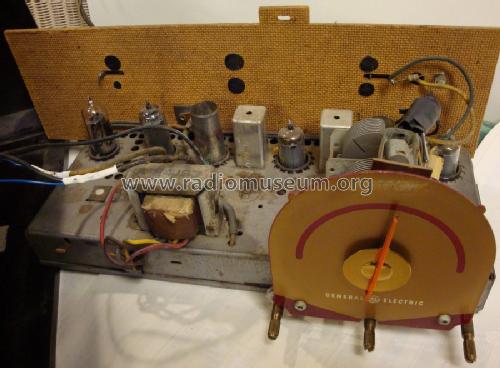

From a Canadian Kijiji advertisement.
From a Canadian Kijiji advertisement.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 0.8 W (1.25 W max.)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Musaphonic C414 - Canadian General Electric
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14.25 x 7.5 x 7.5 inch / 362 x 191 x 191 mm
- Notes
-
Dip solder wiring: The connections on the chassis were all made using a dip solder method, where each connection was put into a terminal that protruded out of the chassis so the connection could be soldered by dipping the chassis into molten solder about 1 cm. GE claimed it eliminated human error. Later TV sets were done the same way.
Available in ivory, walnut and red colour.May be similar to this USA Musaphonic 431 series of radios.
- Price in first year of sale
- 50.00 Can.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1955 Supplement 35)
- Author
- Model page created by Neil Van Dusen. See "Data change" for further contributors.
