• Country
• Canada

• Manufacturer / Brand
• Canadian General Electric (Canada) (C.G.E. or CGE); Toronto, ON

• Year
• 1928/1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93348

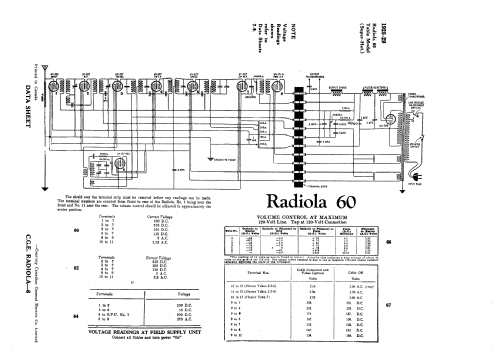

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• UY227 UY227 UY227 UY227 UY227 UY227 UX171A UY227 UX280

• Main principle
• Superhet with RF-stage

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 120 Volt

• Loudspeaker
• - This model requires external speaker(s).

• from Radiomuseum.org
• Model: Radiola 60 - Canadian General Electric

• Shape
• Tablemodel, with any shape - general.

• Literature/Schematics (1)
• Radio College of Canada, Individual Circuit Service, 1927-1953

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.

• Other Models

• Here you find 505 models, 373 with images and 428 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
