• Country
• Canada

• Manufacturer / Brand
• Canadian Admiral Co. Ltd; Long Branch, Ont.

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 302118

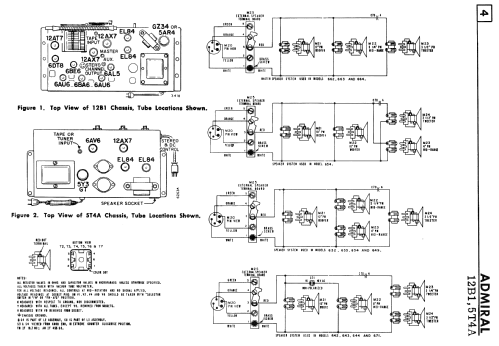

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6DT8 12AT7 6AU6 6BE6 6BA6 6AU6 6AL5 12AX7 12AX7 6BQ5 6BQ5 5AR4

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 4 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 8 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 649 Chante Ch= 12B1 - Canadian Admiral Co. Ltd; Long

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The Admiral model 649 is a 12-tube console radio with AM/FM stereo tuner and an 8W mono amplifier with 12 inch woofer, 5.25 inch midrange, 4 inch midrange and a 3.5 inch tweeter. Has a built in stereo record changer. Requires a matching Admiral model SS649 auxiliary amplifier/speaker unit for the 2nd stereo channel.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1959 Supplement 46)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
