7RT41 Ch= 5L1X
Canadian Admiral Co. Ltd; Long Branch, Ont.
- Country
- Canada
- Manufacturer / Brand
- Canadian Admiral Co. Ltd; Long Branch, Ont.
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 160175
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- from Radiomuseum.org
- Model: 7RT41 Ch= 5L1X - Canadian Admiral Co. Ltd; Long
- Notes
- This set has a built-in antenna. The Admiral 7RT43 is electronically identical to this model.

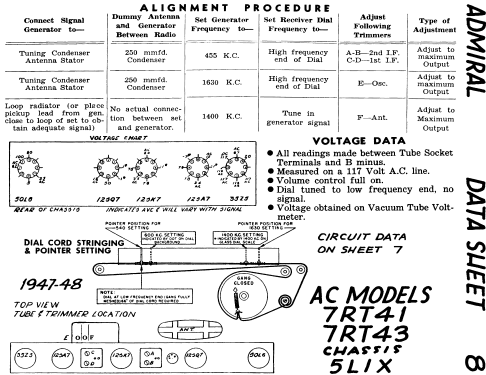

- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Admiral Pages 7, 8, 11
- Author
- Model page created by Robin Roeckers. See "Data change" for further contributors.
