• Country
• Canada

• Manufacturer / Brand
• Canadian Admiral Co. Ltd; Long Branch, Ont.

• Year
• 1957 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 300691

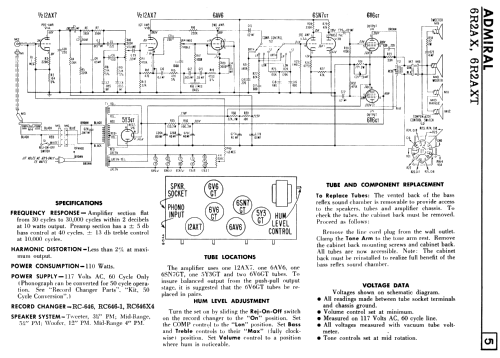

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AX7 6AV6 6SN7 6V6GT 6V6GT 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 4 Loudspeakers

• Power out
• 10 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: HC4416X Ch= 6R2AXT - Canadian Admiral Co. Ltd; Long

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The Canadian Admiral model HC4416X is a 6-tube record changer console. Equipped with a 3.5 inch tweeter, 4 inch mid range, 5.25 inch mid range and a 12 inch woofer. Amplifier is rated 30 Hz to 30 kHz. Has bass and treble controls. For 60 Hz. Phonograph can be modified for 50 Hz with optional accessory kit.

  Model	Colour
  HC4415X	Walnut
  HC4416X	Mahagany
  HC4417X	Blond

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1957 Supplement 41)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
