• Country
• Canada

• Manufacturer / Brand
• Canadian Admiral Co. Ltd; Long Branch, Ont.

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 291546

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• 2N411 2N410 2N410 2N406 2N406 2N406 2N406 1N87A 1N87A 1N2326

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.08 cm = 2 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

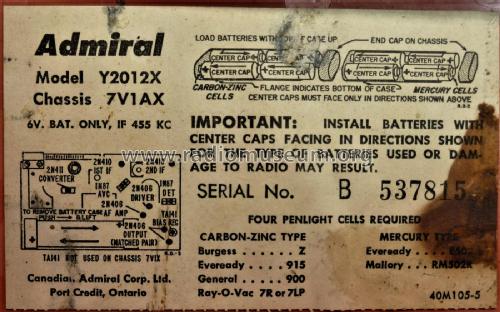

• Model: Y2012X Super 7 Ch=7V1AX - Canadian Admiral Co. Ltd; Long

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 5.5 x 3.5 x 1.75 inch / 140 x 89 x 44 mm

• Notes

• This model was made in Canada by Canadian Admiral Corp. Ltd, Port Credit, Ontario, Canada. It is similar to the USA model Y2012 Ch=7V1A.



• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 14)

• Literature/Schematics (1)
• Beitman Radio Diagrams, Vol. 20, 1960

• Author
• Model page created by Gary Albach. See "Data change" for further contributors.
