- Country
- Canada
- Manufacturer / Brand
- Canadian Westinghouse, Hamilton
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 259239
-
- alternative name: Westinghouse Canada
-- Original-Prospect
-- Original-Prospect
-- Original-Prospect
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 1.6 W (unknown quality)
- from Radiomuseum.org
- Model: 555-BB - Canadian Westinghouse,
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 9 x 5.25 x 5.25 inch / 229 x 133 x 133 mm
- Notes
-
AM includes "Police Band".
- Mentioned in

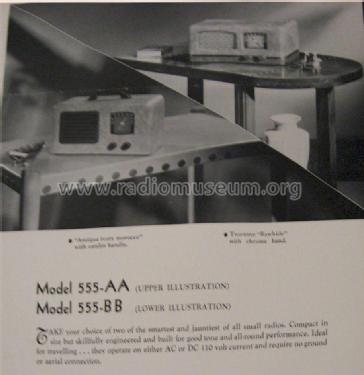

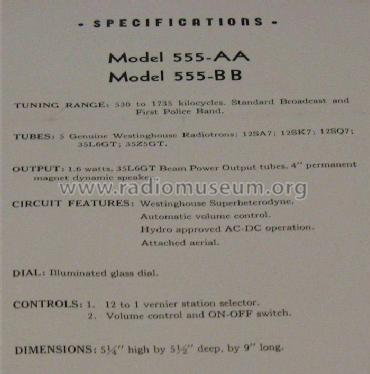

- -- Original prospect or advert
- Author
- Model page created by a member from A. See "Data change" for further contributors.
