• Country
• Canada

• Manufacturer / Brand
• Canadian Westinghouse, Hamilton

• Year
• 1940/1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153282

• • alternative name: Westinghouse Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

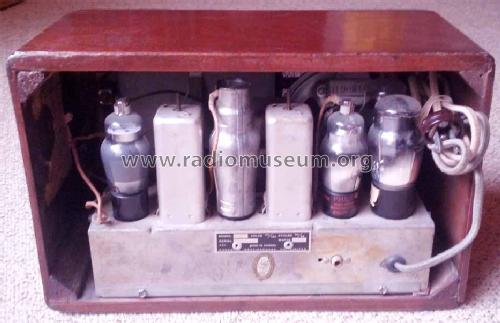

• 2A7 56 2B7 2A5 80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org

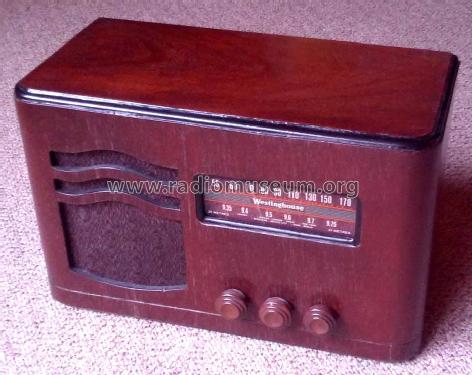

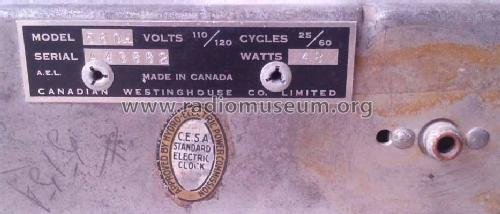

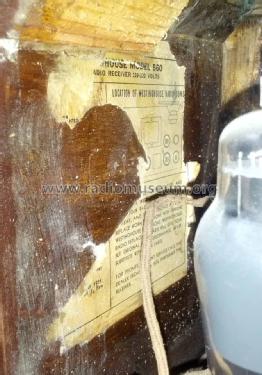

• Model: 560-A [late] - Canadian Westinghouse,

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Westinghouse page 101

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
