- Country
- Canada
- Manufacturer / Brand
- Canadian Westinghouse, Hamilton
- Year
- 1946/1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 153609
-
- alternative name: Westinghouse Canada
Interior view with original capacitors.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org

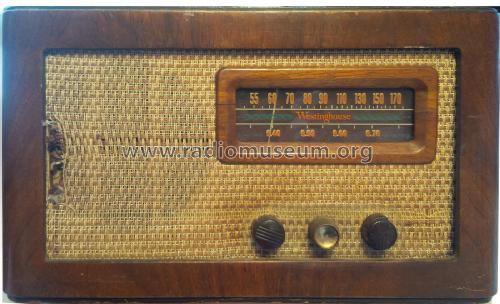

- Model: 569 - Canadian Westinghouse,
- Circuit diagram reference
- Radio College of Canada
- Literature/Schematics (1)
- Westinghouse page 121
