• Country
• Canada

• Manufacturer / Brand
• Canadian Westinghouse, Hamilton

• Year
• 1946/1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 153610

• • alternative name: Westinghouse Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 35L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm

• Power out
• 0.5 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

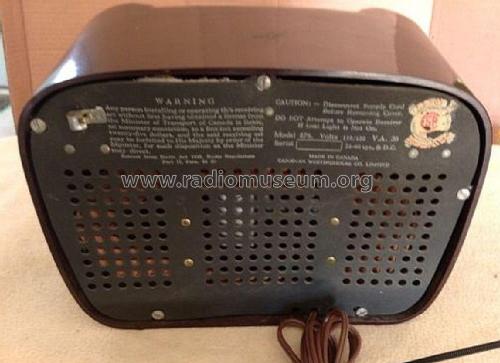

• Model: 578 - Canadian Westinghouse,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 10 x 7 x 6.5 inch / 254 x 178 x 165 mm

• Notes

• Frequency range 540 - 1730 Kc. Built in loop antenna.

  Shipping weight 10 lbs.

• Net weight (2.2 lb = 1 kg)
• 10 lb 0 oz (10 lb) / 4.540 kg

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Westinghouse page 122

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
