5T125 Bandleader Mk II

Canadian Westinghouse, Hamilton

Data
Forum
Pictures
Collections

  • Year
  • 1956/1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 231632
    • alternative name: Westinghouse Canada

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • AC/DC-set / 120 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • Power out
  • 2.5 W (unknown quality)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org
  • Model: 5T125 Bandleader Mk II - Canadian Westinghouse,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 10.25 x 5.875 x 5.25 inch / 260 x 149 x 133 mm
  • Notes

  • Available in Walnut, Ivory, Green, Red or White. All have dial numbers in Gold.

    Same circuit diagram as model 5T122.

  • Net weight (2.2 lb = 1 kg)
  • 4 lb (4 lb 0 oz) / 1.816 kg
  • Price in first year of sale
  • 21.95 CDN
  • Literature/Schematics (3)

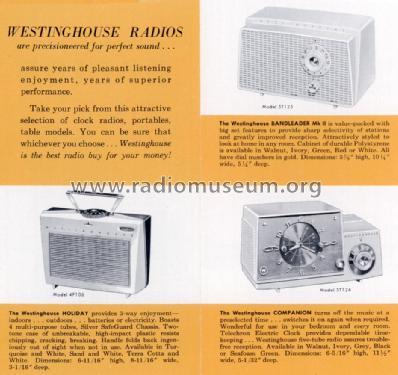

  • -- Original prospect or advert (The Westinghouse Folder for 1957.)
  • Author
  • Model page created by John Allen. See "Data change" for further contributors.
