5T126 Wide-Fi Ch= X-003-501
Canadian Westinghouse, Hamilton
- Country
- Canada
- Manufacturer / Brand
- Canadian Westinghouse, Hamilton
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 253179
-
- alternative name: Westinghouse Canada
Product Catalogue

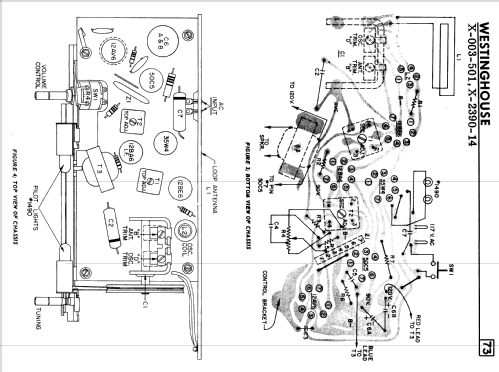

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: 5T126 Wide-Fi Ch= X-003-501 - Canadian Westinghouse,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 14.4375 x 6 x 5.5 inch / 367 x 152 x 140 mm
- Notes
-
Available in Turquoise and White, Charcoal and White, Sandalwood and White finish. Has 10 inch oval speaker.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1959 Supplement 46)
- Literature/Schematics (3)
- -- Original prospect or advert (The Westinghouse Folder for 1957.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
