• Country
• Canada

• Manufacturer / Brand
• Canadian Westinghouse, Hamilton

• Year
• 1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 289963

• • alternative name: Westinghouse Canada

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6SK7 6SA7 6SK7 6SQ7 6F6G 5Y4G

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

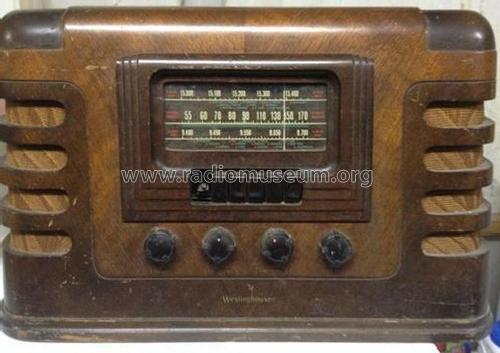

• Model: 684 - Canadian Westinghouse,

• Shape
• Tablemodel with Push Buttons.

• Notes

• This model shares the same schematic as W-684-A but has a different cabinet.

• Mentioned in
• Radio College of Canada (RCC) (1941-42 Westinghouse Sheet 113, 114)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
