• Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 153612
    • alternative name: Westinghouse Canada

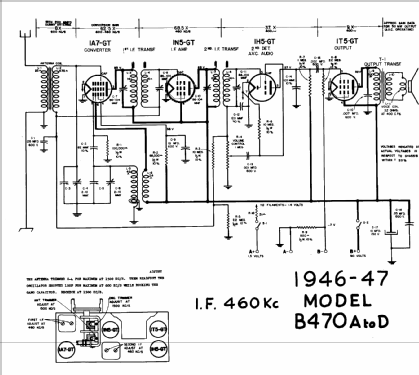

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 90 & 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: B470-A [Late] - Canadian Westinghouse,
  • Circuit diagram reference
  • Radio College of Canada
  • Literature/Schematics (1)
  • Westinghouse page 124
  • Author
  • Model page created by Dirk Taekels. See "Data change" for further contributors.
