- Country
- Canada
- Manufacturer / Brand
- Canadian Westinghouse, Hamilton
- Year
- 1925/1926 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 248838
-
- alternative name: Westinghouse Canada

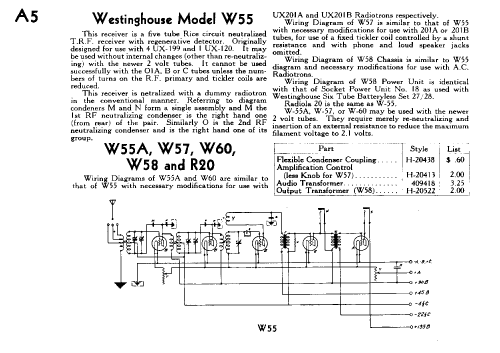

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- TRF with regeneration; Neutrodyne
- Tuned circuits
- 3 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 3 & 45 & 90 & 135 & -4.5 & -22.5 Volt
- Loudspeaker
- - This model requires external speaker(s).
- from Radiomuseum.org
- Model: W55 - Canadian Westinghouse,
- Price in first year of sale
- 150.00 CDN
- Mentioned in
- Canadian Westinghouse Radio Service Manual, Special Section RS 150
- Literature/Schematics (1)
- Price source; Radios of Canada, Lloyd Swackhammer, Page 29
- Author
- Model page created by Bruce Morgenstern. See "Data change" for further contributors.
