Camcorder UC5500

• Country
• Japan

• Manufacturer / Brand
• Canon Inc.; Tokyo

• Year
• 1997 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 350077

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Details
• Video-Taperecorder/-Player

• Power type and voltage

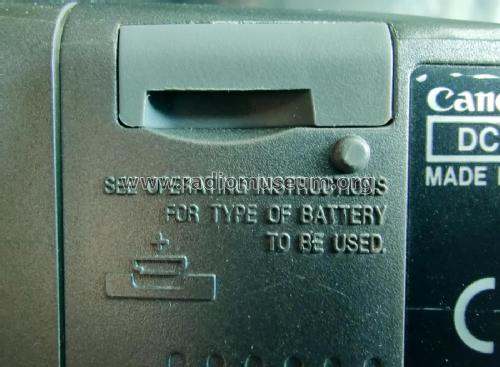

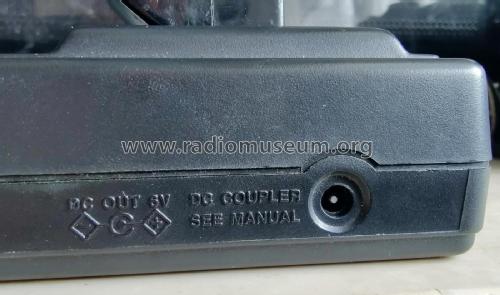

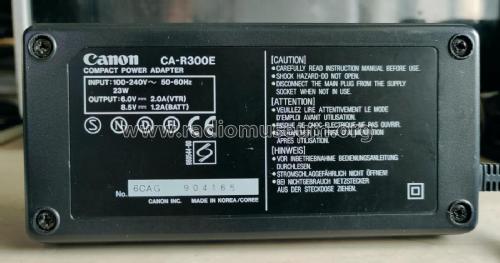

• Batteries / addl. power jack / NiCd: 6 / 6 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Camcorder UC5500 - Canon Inc.; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 106 x 109 x 184 mm / 4.2 x 4.3 x 7.2 inch

• Net weight (2.2 lb = 1 kg)
• 0.730 kg / 1 lb 9.7 oz (1.608 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
