Canovision Hi8 Video Camera Recorder Camcorder E800 Hi E

Canon Inc.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1990 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 359179

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Valves / Tubes
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Video-Taperecorder/-Player; Remote Control (with wire or wireless)
  • Power type and voltage
  • Line / Storage batteries (perhaps also batteries) / NiCd: 6 / 6 & Li-Ion 1 x 3 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Canovision Hi8 Video Camera Recorder Camcorder E800 Hi E - Canon Inc.; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 115 x 295 x 123 mm / 4.5 x 11.6 x 4.8 inch
  • Notes

  • Canon Canovision E800 Hi, Video Camera Recorder

    • Power supply (rated): 6 V DC
    • Power consumption: 8.0 W
    • Television system: CCIR standard (625 lines, 50 fields), PAL colour signal
    • Video recording system: 2 rotary heads, helical scanning system, Luminance signal: FM azimuth recording, Colour signal: Converted subcarrier phase shift recording (8 mm video standard)
    • Audio recording system: Frequency multiplexing with the video signal by 2 rotary heads (2 channels)
    • Image sensor: 1/2-inch CCD (Charge Coupled Device)
    • Tape format: 8 mm, metal evaporated/metal particle
    • Tape speed: 20.051 mm/s (SP), 10.026 mm/s (LP)
    • Maximum recording time: 3 hours with PS-90 video cassette in LP mode
    • Lens: f/1.4, 8 x power zoom, 8.5-68 mm focal length, macro (wide/tele)
    • Focusing system: TTL autofocus, manual focusing possible
    • Minimum focusing distance: 0.6 m with AF macro, or 4 mm in wide macro
    • Minimum illumination: 5 lux
    • Filter diameter: 46 mm
    • Electronic viewfinder: 0.7-inch monochrome CRT
    • Microphone: Stereo electret condenser microphone
    • Input level Audio: -64 dBV/600 Ω unbalanced (external mic)
    • Output level Video: 1 Vp-p/75 Ω, unbalanced (video output terminal). 1 Vp-p (Y signal)/0.286 Vp-p (C signal) (S-video output)
    • Output level Audio: Audio: - 10 dBV/less than 3 kΩ, unbalanced (audio output terminal/stereo audio outputs)
  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Mentioned in

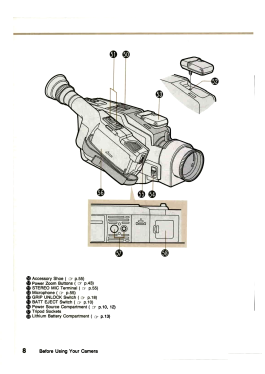

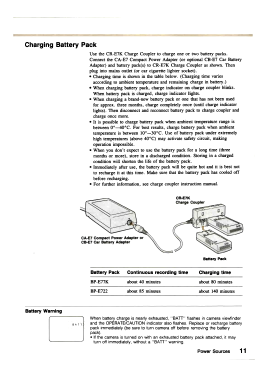

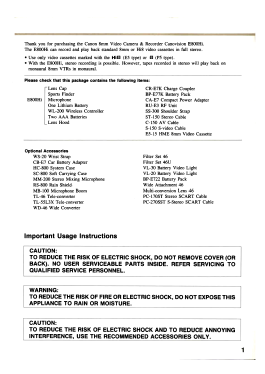

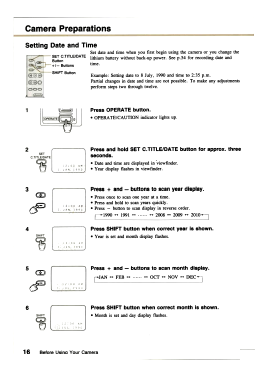

  • - - Manufacturers Literature (Instruction Manual dated 1990)
