• Country
• Germany

• Manufacturer / Brand
• Canton; Weilrod

• Year
• 1986 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 265637

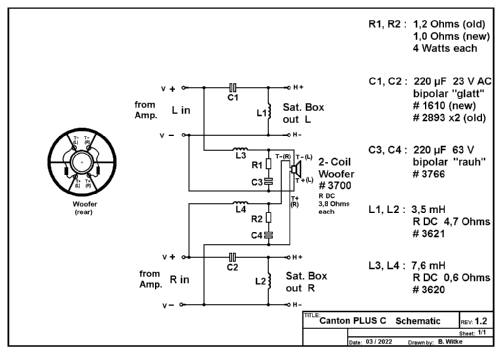

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

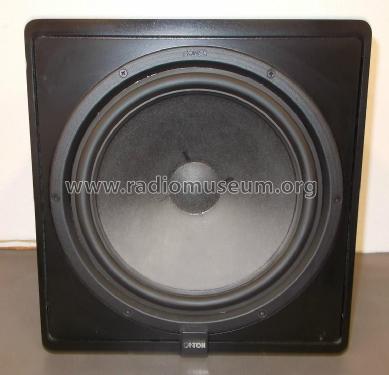

• Model: Subwoofer Plus C - Canton; Weilrod

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 305 x 335 x 350 mm / 12 x 13.2 x 13.8 inch

• Notes

• Nenn- Belastbarkeit: 2 x 70 Watt

  Musik- Belastbarkeit: 2 x 100 Watt

  Impedanz: 4 Ohm

  Übertragungsbereich: 22 - 120 Hz

• Net weight (2.2 lb = 1 kg)
• 12 kg / 26 lb 6.9 oz (26.432 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
