319MX Ch= CT-27
Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Country
- United States of America (USA)
- Manufacturer / Brand
- Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Year
- 1952 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 354046

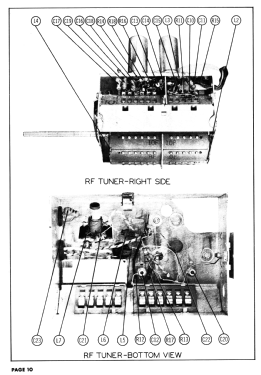

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 23
- Valves / Tubes
- 6AK5 6J6 6CB6 6AG5 6CB6 6AH6 6AU6 6AL5 6AV6 6K6GT 6CB6 12AT7 12AU7 6SN7GT 6K6GT 6AL5 6AU6 6SN7GT 6BG6G 6W4GT 1B3GT 5U4G 20CP4
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 319MX Ch= CT-27 - Capehart Corp.; Fort Wayne, IN
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Capehart model 319MX is a 20” b/w TV with US standard VHF tuner channels 2 thru 13.
Equipped with chassis CT-27, VHF tuner 850196A-G1 and picture tube 20CP4.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 160, folder 2, dated 2-52)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
