• Country
• United States of America (USA)

• Manufacturer / Brand
• Capehart Corp.; Fort Wayne, IN - see also Farnsworth

• Year
• 1931

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 264604

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 27 27 45 45 80

• Main principle
• Audio-Amplification; 3 AF stage(s)

• Wave bands
• - without

• Details
• Jukebox-Coin operated Phonograph

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 12 W (20 W max.)

• Material
• Wooden case

• from Radiomuseum.org

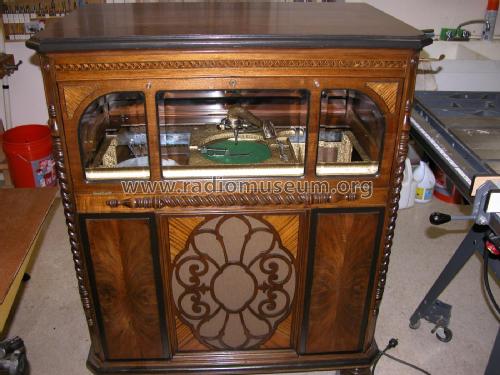

• Model: Amperion JB - Capehart Corp.; Fort Wayne, IN

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 40 x 50 x 19 inch / 1016 x 1270 x 483 mm

• Net weight (2.2 lb = 1 kg)
• 180 lb (180 lb 0 oz) / 81.720 kg

• Price in first year of sale
• 200.00 USD

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Douglas Cook. See "Data change" for further contributors.
