Capehart 6T216BD-5 Ch= CX-38S Series
Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Country
- United States of America (USA)
- Manufacturer / Brand
- Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Year
- 1956 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 274982

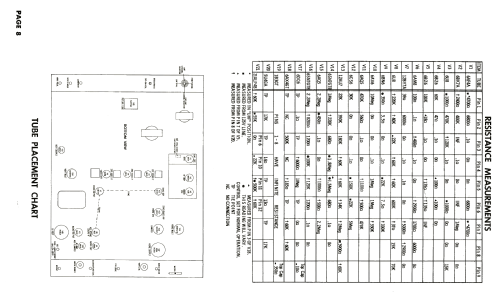

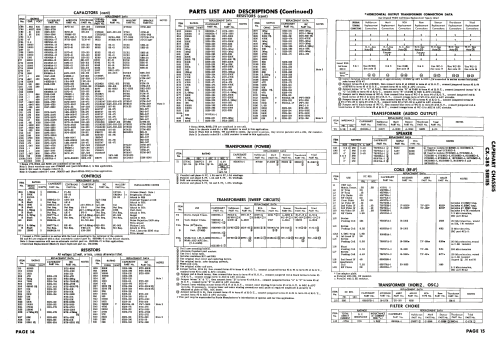

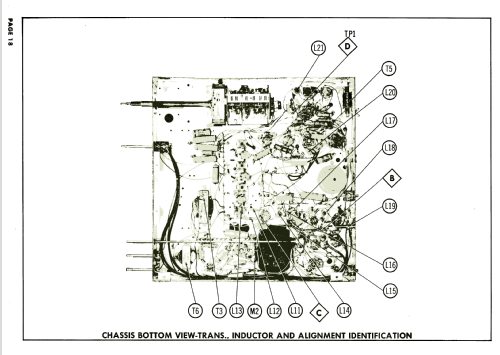

Picture from service manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 21
- Valves / Tubes
- 6AF4A or 6T4 6BK7A 6U8 6BZ6 6BZ6 6AM8 12BY7A 6U8 6BN6 6AV6 6AQ5 6CS6 12AU7 6SN7GTB 6AQ5 6SN7GTB 6DQ6 or 6CU6 6AX4GT 1B3GT 5U4GA 21ALP4B
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Material
- Wooden case
- from Radiomuseum.org
- Model: Capehart 6T216BD-5 Ch= CX-38S Series - Capehart Corp.; Fort Wayne, IN
- Shape
- Console with any shape - in general
- Notes
-
The CAPEHART model 6T216BD-5 is a 21" b/w TV with US standard VHF Tuner channels 2 thru 13, 14 thru 83 UHF.Equipped with VHF-tuner 850374A-1, UHF-tuner 750744A-1, chassis CX-38S Series and picture tube 21ALP4B.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Set 331 Folder 2 dated 9-56)
- Author
- Model page created by Dirk Taekels. See "Data change" for further contributors.
