Capehart 1007AM Ch= C-318
Farnsworth Television & Radio Corp. - see also Capehart
- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 35064

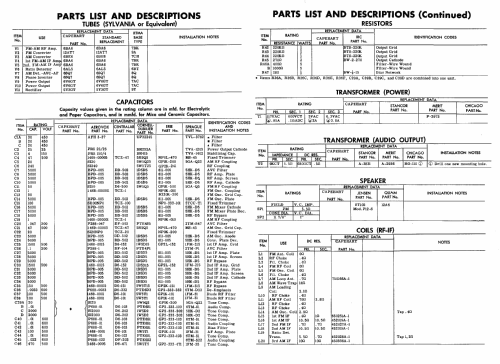

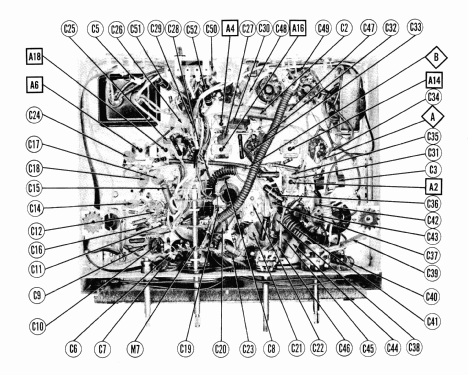

Picture from service manual.
SAMS

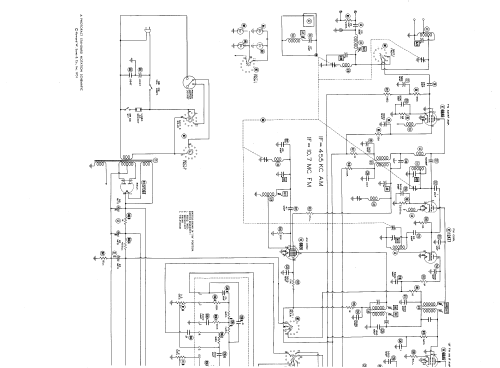

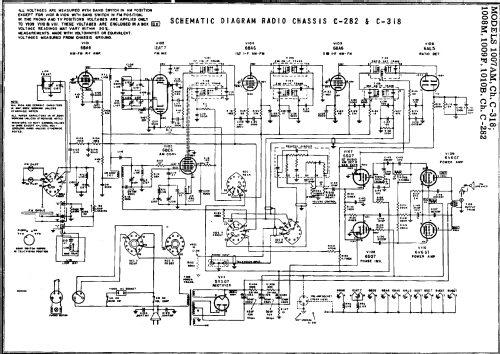

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.875 inch = 30.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Capehart 1007AM Ch= C-318 - Farnsworth Television & Radio
- Shape
- Console with any shape - in general
- Notes
-
The Capehart model 1007AM with chassis C-318 from Capehart-Farnsworth Corp. is an AC operated combination AM-FM phono-radio with built in AM loop antenna. For service information on record changer see V-M model 950 in Photofact set 107, folder 13 or record changer manual CM-3.
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 23 (last), covering up to 1954
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 11-51, set 150, folder 5)
- Other Models
-
Here you find 400 models, 284 with images and 327 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
