Capehart 17RPQ155F Ch= CR-200 & CA-199
Farnsworth Television & Radio Corp. - see also Capehart
- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1954/1955
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 131931
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455;10700 kHz; 2 AF stage(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Record Player + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Capehart 17RPQ155F Ch= CR-200 & CA-199 - Farnsworth Television & Radio
- Shape
- Console with any shape - in general
- Notes
-
The Capehart model 17RPQ155F with chassis CR-200 & CA-199 is an AC operated combination AM-FM radio-phonograph and tape recorder with 4 permanent dynamic speakers, 2 with a diameter of 5" and two with a diameter of 12".
- Literature/Schematics (1)

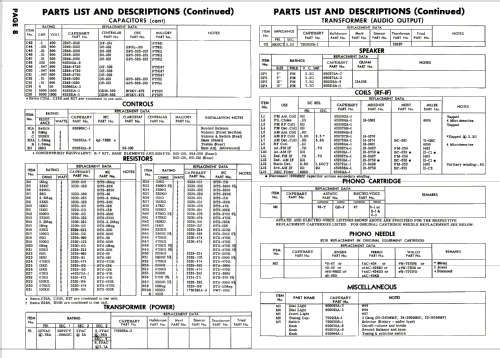

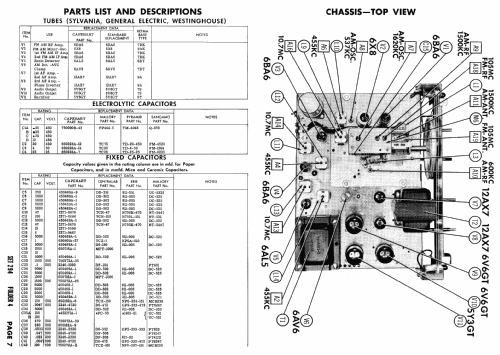

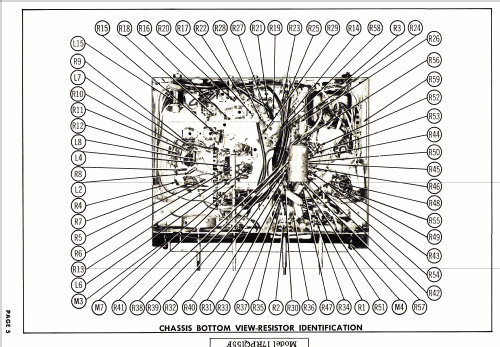

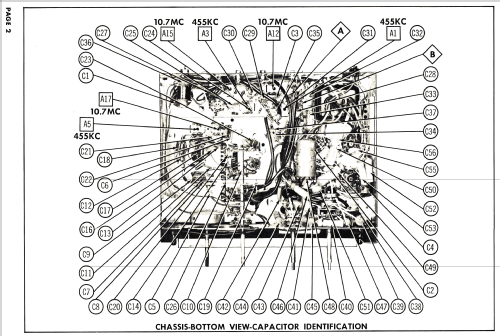

- Photofact Folder, Howard W. SAMS (Date 10-55, set 294, folder 4)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
