• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80721

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

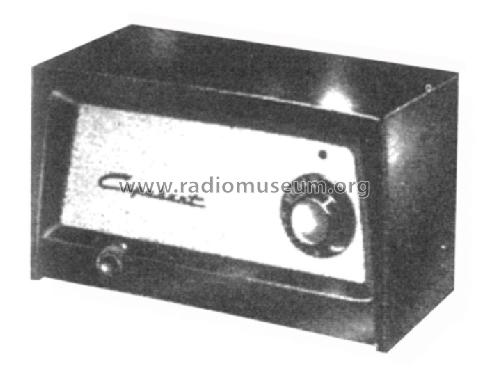

• Model: Capehart 2T55 Ch= CR-154 - Farnsworth Television & Radio

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• The model 2T55 with chassis CR-154 and model 3T55 with chassis CR-150 share the same plan on the SAMS Photofact Folder, but pictured is only the 3T55. The model 2T55 was available in Green, Brown and Ivory.

• Source of data
• Machine Age to Jet Age III

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 15, 1955

• Literature/Schematics (1)

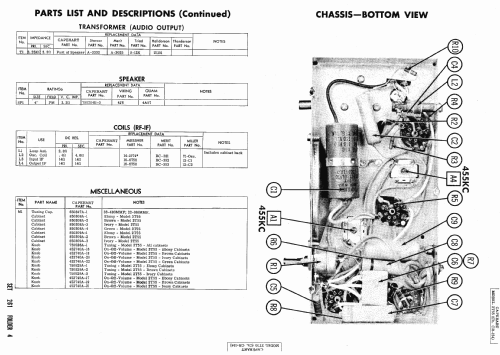

• Photofact Folder, Howard W. SAMS (Date 12-54, set 261, folder 4)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
