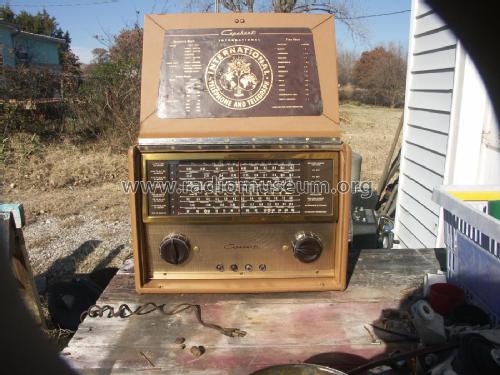

Capehart International 88P66NL
Farnsworth Television & Radio Corp. - see also Capehart
- Country
- United States of America (USA)
- Manufacturer / Brand
- Farnsworth Television & Radio Corp. - see also Capehart
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 75334
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / Either AC: 60 cycles, 117V or DC: 117V or Batteries: 9 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Capehart International 88P66NL - Farnsworth Television & Radio
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 17.5 x 13 x 10 inch / 445 x 330 x 254 mm
- Notes
-
The Capehart International 88P66NL is an AC/DC/Battery operated 5 tube BC, LW and SW band receiver. Uses PM elliptical 5" x 7" speaker.
This model was possibly manufactured by Hallicrafters for Capehart (Hallicrafters TW-2000 is similar to this model).
These receivers have labels clearly marked 88P66NL, however the only known documentation is in the SAMS Photofact Set 331, folder 3, which lists the model number as 88P66BNL. Thus it is not clear if there were separate models 88P66NL/88P66BNL OR if the SAMS Photofact has a typo in the model name.
