• Country
• United States of America (USA)

• Manufacturer / Brand
• Farnsworth Television & Radio Corp. - see also Capehart

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 35084

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12SQ7GT 50L6GT 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105 - 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Power out
• 1.75 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

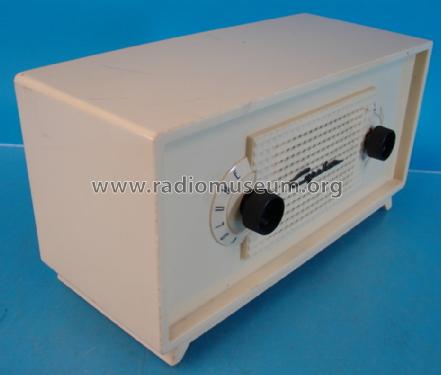

• Model: Capehart T-30 Ch= C300 - Farnsworth Television & Radio

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.5 x 6.6 x 5.4 mm / 0.5 x 0.3 x 0.2 inch

• Notes
• Colors available: Green, Burgundy, Ivory and Black.

• External source of data
• Ernst Erb

• Source of data
• Collector's Guide to Antique Radios 4. Edition

• Circuit diagram reference
• Beitman Radio Diagrams Vol. 11, 1951

• Mentioned in
• Rider's Perpetual, Volume 23 (last) = covering up to 1954 (The Radio CollectorGrinder, 1995)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 8-51, Set 141, Folder 3)

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 77.)
