Orchestrope M1W
Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Country
- United States of America (USA)
- Manufacturer / Brand
- Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Year
- 1936/1937
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 227884
From Capehart folder for Orchestrope M1W.
From Capehart folder for Orchestrope M1W.
From Capehart folder for Orchestrope M1W.
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Jukebox-Coin operated Phonograph
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles (separate order for 25 or 50 cycles), 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Orchestrope M1W - Capehart Corp.; Fort Wayne, IN
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 27 x 52 x 19 inch / 686 x 1321 x 483 mm
- Notes
-
Orchestrope M1W
The M2W and M1W exist at the same time. Common is Push buttons opposite program slip to avoid numbers, program holder, coin slides in in one location at the top.
There are several models of Orchestrope known like: Club, Commercial (wide), Commercial (high), Commercial 28 as 28-F, (perhaps 28-G) and 28-GB, Auditorium with a separate Orchestrope Speaker, Aristocrat without coin slot, Home and the "Park" with a separate speaker cabinet, Speaker 600.
In March 1930 came a less expensive Amperion line with a simple turning changer, followed by models with the drop-type only "10-12" mechanism in 1931. The main success was later the changer 16-E etc. - see more details and summaries here.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
- Other Models
-
Here you find 262 models, 153 with images and 119 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Capehart Corp.; Fort Wayne, IN - see also Farnsworth
Forum contributions about this model: Capehart Corp.; Fort: Orchestrope M1W
Threads: 1 | Posts: 2

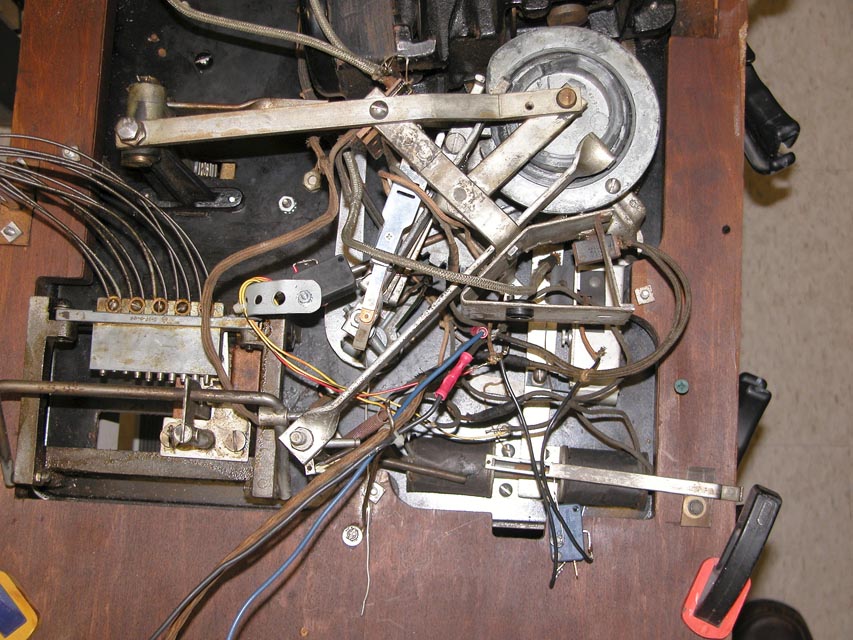

I am restoring this 1936 Jukebox. The mechanism was grossly cannibalized and missing parts. The posted ID 227884 is identical to the one I am restoring. I need a picture of the bottom of the model B mechanism within this JB. Attached is a picture of the one I am restoring. Is there any possiblilty I could get a picture?
thank you
Doug Cook
Attachments
- Capehart M1W mechanism (158 KB)
Douglas Cook, 04.Sep.20
