Orchestrope Series A
Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Country
- United States of America (USA)
- Manufacturer / Brand
- Capehart Corp.; Fort Wayne, IN - see also Farnsworth
- Year
- 1936 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 227887
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Jukebox-Coin operated Phonograph
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles (separate order for 25 or 50 cycles), 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Orchestrope Series A - Capehart Corp.; Fort Wayne, IN
- Shape
- Console with any shape - in general
- Notes
-
Orchestrope Series A

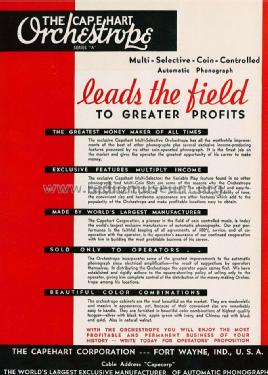

According to the "Price List and Specifications" for Series A models A-1 were priced (then) for $ 265 and A-10 for $ 247.50. This series A variants::
Model Cabinet Details A-1-W Walnut Multi-Slot (5c, 10c & 25c) A-1-S Silver-Black Variable Play Combination A-1-G Green-Ivory Equipped for use with Wall Boxes A-10-W Walnut Single Coin Slot (either 5c, 10c or 25c) A-10-S Silver-Black One play per coin A-10-G Green-Ivory Equipped for use with Wall Boxes Besides the variants of A series there are several models of Orchestrope known like: Club, Commercial (wide), Commercial (high), Commercial 28 as 28-F, (perhaps 28-G) and 28-GB, Auditorium with a separate Orchestrope Speaker, Aristocrat without coin slot, Home and the "Park" with a separate speaker cabinet, Speaker 600.
In March 1930 came a less expensive Amperion line with a simple turning changer, followed by models with the drop-type only "10-12" mechanism in 1931. The main success was later the changer 16-E etc. - see more details and summaries here.
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
