• Country
• United States of America (USA)

• Manufacturer / Brand
• Capitol Records Distributing Corp.; Hollywood, CA

• Year
• 1947 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 190067

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SK7 6SK7 6H6 6SN7GT 6V6GT 6V6GT 5U4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: D-17 - Capitol Records Distributing

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Literature/Schematics (4)

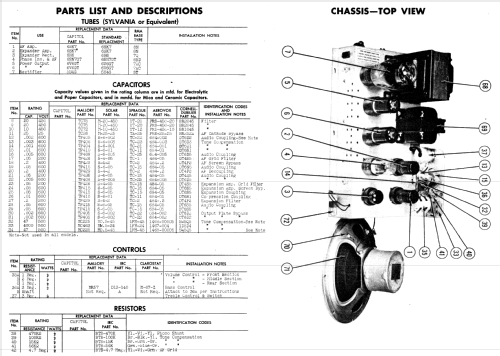

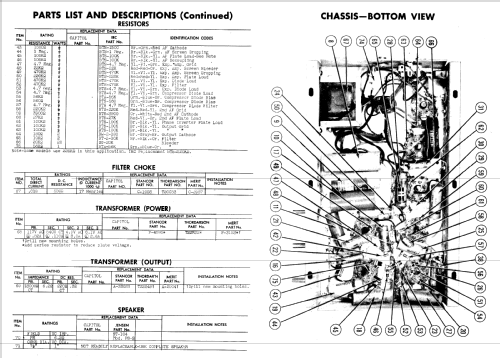

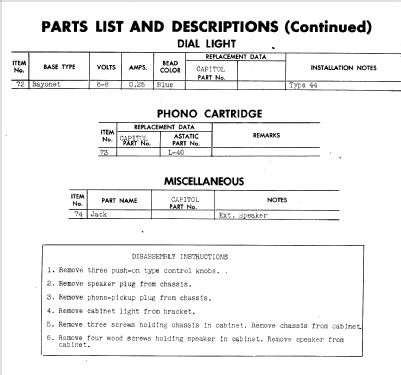

• Photofact Folder, Howard W. SAMS (Set 30, Date 12/47, Folder 4720-4)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 10 models, 10 with images and 3 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
