• Country
• Morocco

• Manufacturer / Brand
• Capitaine Kohn, Ksar Es-Souk (Errachidia)

• Year
• 1951

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 230771

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6K7 6K8 6K7 6Q7 6AF7G 6SF5 6F6 6F6 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6.4 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

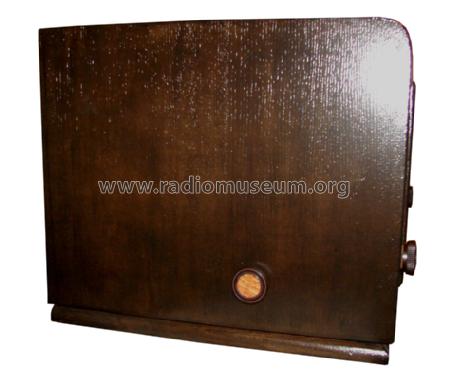

• Model: Superhétérodyne Modèle 1 - Capitaine Kohn, Ksar Es-Souk

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 455 x 390 mm / 23.2 x 17.9 x 15.4 inch

• Notes

• Gammes d'ondes: OL (GO), 2x OM (PO), 2x OC.

  Double chaine d'amplification séparé. Deux haut-parleurs 17 et 21 cm.



• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Author
• Model page created by Laurent Thimonnier. See "Data change" for further contributors.
