• Country
• Belgium

• Manufacturer / Brand
• Carad; Kuurne

• Year
• 1956 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 206515

• • Brand: Carpentier, Ets. G.L.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• ECC83 ECC83 ECC83

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

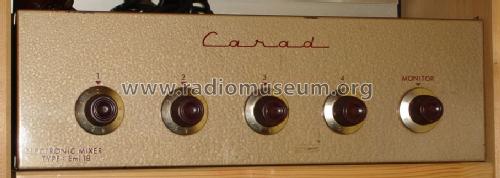

• Model: Electronic mixer Emi18 - Carad; Kuurne

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 390 x 120 x 150 mm / 15.4 x 4.7 x 5.9 inch

• Notes
• Powered from tape recorder R62PA.

• Price in first year of sale
• 2,500.00 BEF

• Author
• Model page created by Jacques Deseyne. See "Data change" for further contributors.
