Professional Amplifier Stereo All Silicon Ch= MPAS 30

Carad; Kuurne

  • Year
  • 1970
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 154645
    • Brand: Carpentier, Ets. G.L.

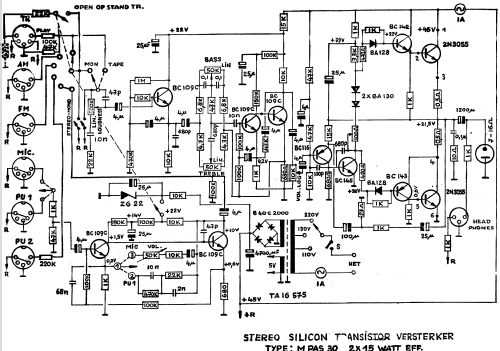

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 22
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 30 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Professional Amplifier Stereo All Silicon Ch= MPAS 30 - Carad; Kuurne
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 390 x 120 x 200 mm / 15.4 x 4.7 x 7.9 inch
  • Notes
  • Transistoren und Dioden sind mehrfach vorhanden.

  • Source of data
  • -- Schematic
  • Author
  • Model page created by Heribert Jung. See "Data change" for further contributors.
