• Year
  • 1959–1965 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 109312
    • Brand: Carpentier, Ets. G.L.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 12 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org

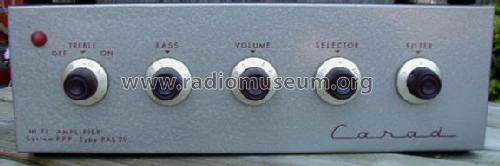

  • Model: PAS29 - Carad; Kuurne
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 390 x 125 x 200 mm / 15.4 x 4.9 x 7.9 inch
  • Notes
  • System PPP; 2 selenium rectifiers E250C85.
  • Net weight (2.2 lb = 1 kg)
  • 7.3 kg / 16 lb 1.3 oz (16.079 lb)
  • Mentioned in
  • -- Original prospect or advert
