Professional Tape Recorder R73
Carad; Kuurne
- Country
- Belgium
- Manufacturer / Brand
- Carad; Kuurne
- Year
- 1970–1974
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 205705
-
- Brand: Carpentier, Ets. G.L.
Q: Carad, Prospekt 1973
Q: Carad, Prospekt 1973

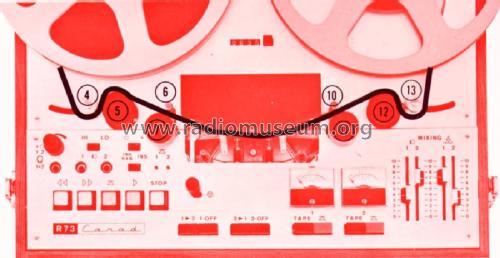

How to bring the tape on the recorderheads.

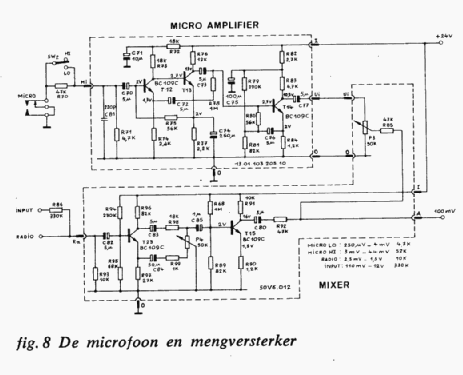

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 145; 220; 245 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Professional Tape Recorder R73 - Carad; Kuurne
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 520 x 225 x 460 mm / 20.5 x 8.9 x 18.1 inch
- Notes
- Several styles of case known, either in portable case (walnut), metal case or chassis.
- Author
- Model page created by Jacques Deseyne. See "Data change" for further contributors.
