Stereo amplifier 2002S PAS64
Carad; Kuurne
- Country
- Belgium
- Manufacturer / Brand
- Carad; Kuurne
- Year
- 1969–1973
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 208675
-
- Brand: Carpentier, Ets. G.L.

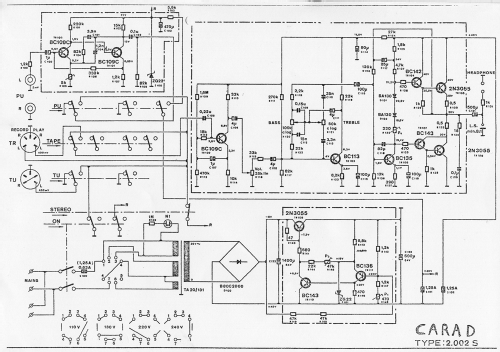

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 21
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 245 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 30 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Stereo amplifier 2002S PAS64 - Carad; Kuurne
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 395 x 60 x 340 mm / 15.6 x 2.4 x 13.4 inch
- Notes
- This stand-alone amplifier uses the AA59 output amplifier circuit of the R59 tape recorder, to which a regulated power supply and an RIAA pre-amplifier for magneto-dynamic were added.

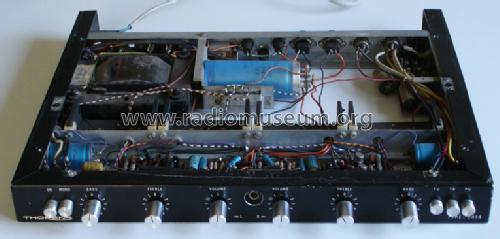

It was later sold under the brand Thorens (with a simpler unregulated power supply) and also as a construction kit distributed by MBLE Belgium, the BBO 863.
Some transistors listed are used more than once, e.g. BC109 (6x), BC143 (3x) and 2N3055 (5x).
- Source of data
- - - Data from my own collection
- Author
- Model page created by Jacques Deseyne. See "Data change" for further contributors.
