• Country
• Italy

• Manufacturer / Brand
• Carisch Radio; Milano

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 155495

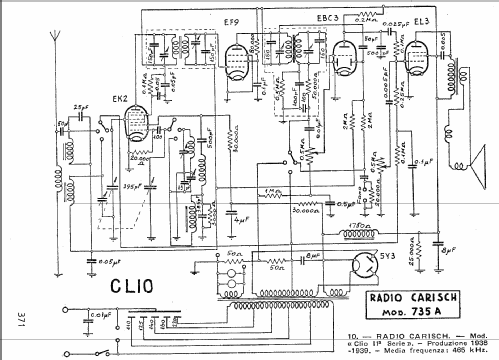

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EK2 EF9 EBC3 EL3 5Y3

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• from Radiomuseum.org
• Model: Clio II serie 735A - Carisch Radio; Milano

• Source of data
• Il Radio Libro, (Ravalico) 8.Ed.

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
