• Country
• Italy

• Manufacturer / Brand
• Carisch Radio; Milano

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193691

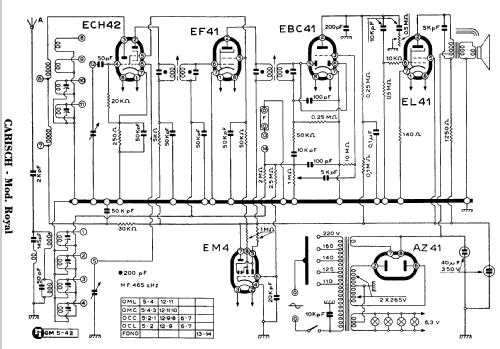

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM4 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• from Radiomuseum.org
• Model: Royal - Carisch Radio; Milano

• Literature/Schematics (1)
• Il Manuale del Radiomeccanico (Vol.3°)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
